FEATURES
Sustainable & Efficient
Eco-friendly R290 refrigerant and a variable-speed magnetic DC pump motor reduce energy consumption, while the stand-by function, premium foamed insulation, and improved water tank design minimise water usage and operating costs.
Durable & Hygienic Construction
Closed water circuit ensures maximum hygiene and food safety. Internal components are made from food-grade stainless steel (AISI 430), and an optional scoop holder kit promotes safe handling of ice.
Advanced Technology

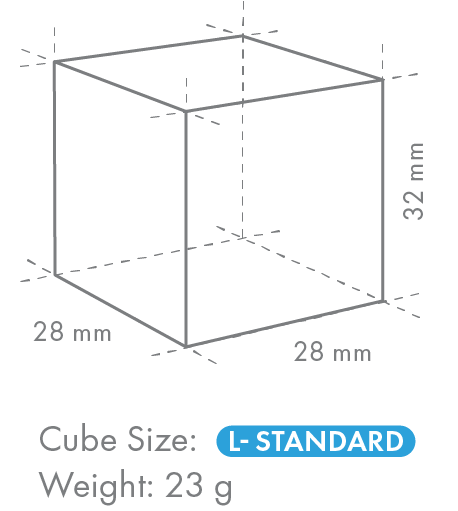

Smart pump motor adjusts water flow throughout the ice-making process to prevent chipped or cloudy cubes. The closed cell system produces consistent, individual ice cubes.
Smart, Long-Lasting Design
Automated cleaning with wash auto-restart, plus water circuit and condenser cleaning notifications, simplify maintenance and extend equipment lifespan.
Compact & Space-Saving

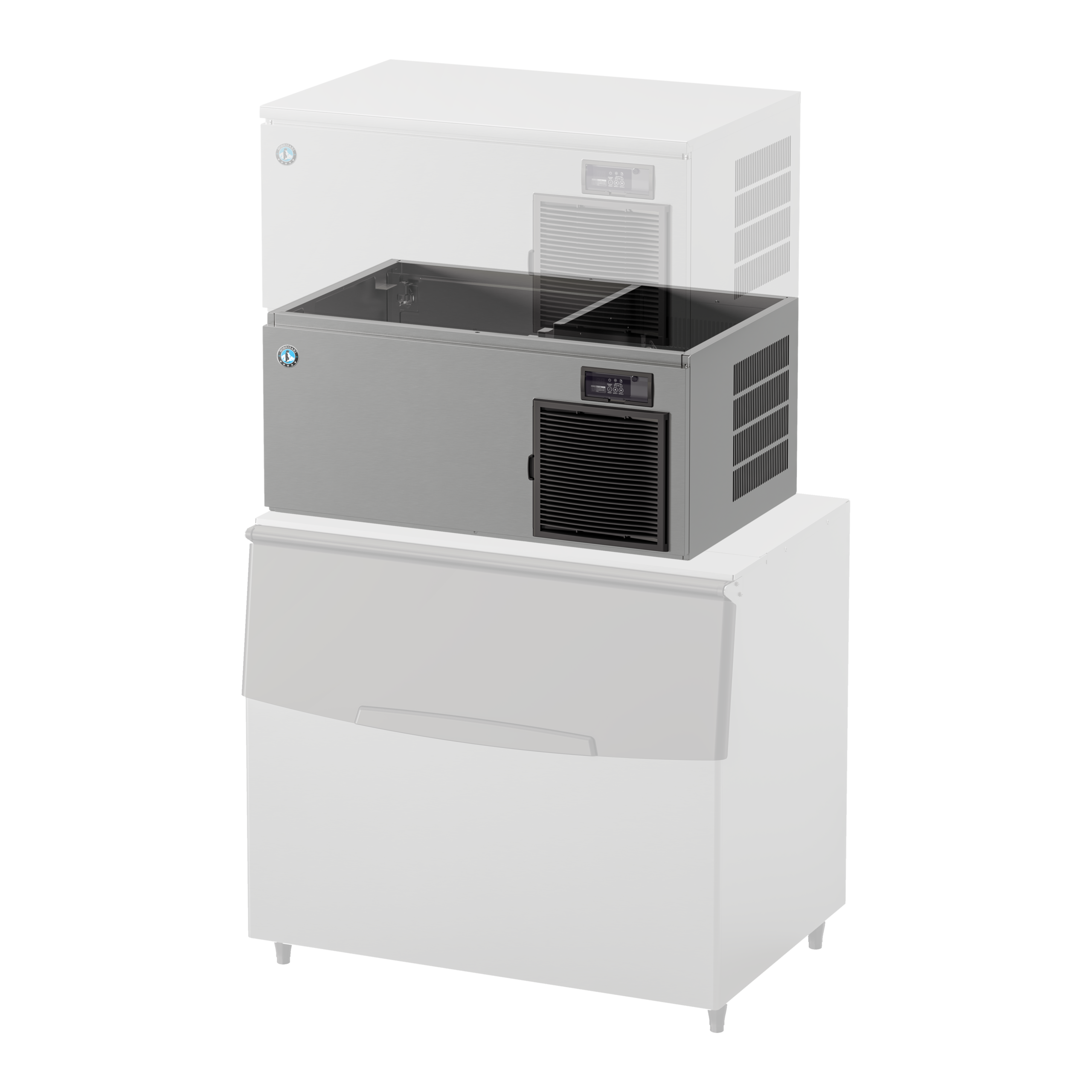

Modular and stackable design allows efficient use of space while providing high ice output for growing operations.
Plug & Play Installation
Intuitive stand-by and wash controls, adjustable dimple size panel, and easily removable water tank and DC pump make installation and maintenance quick and simple.
SPECIFICATIONS
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Production Capacity per 24hours | Approx. 195kg @10°C Air temp; 10°C Water Approx. 180kg @ 21°C Air temp; 15°C Water Approx. 160kg @ 32°C Air temp; 21°C Water |
| Corresponding Bins & Top Kits | B-801SA (IMD) | B-1300 SS (No Top kit) |
| Width | 1084mm |
| Depth | 700mm |
| Height | 500mm |
| Weight Net | 78kg |
| Packed Weight | 93kg |
| Cooling | Air |
| AC Supply Voltage | 1 PHASE 220-240V 50Hz/ 10 AMP Plug |
| Amperage | Running: 3.7A Rated Motor: 3.7A Starting: 27A |
| Refrigerant Charge | R290 / 147g |
| Operating Conditions | Ambient Temp.: 1-40°C Water Supply Temp.: 5-35°C Water Supply Pressure: 0.07-0.8MPa (0.7 – 8bar) Voltage Range: Rated Voltage ±6% |
| Electric Consumption | 845W |
| Water Consumption Per 24h | Approx. 0.67m³ @10°C Air temp; 10°C Water Approx. 0.32m³ @ 21°C Air temp; 15°C Water Approx. 0.29m³ @ 32°C Air temp; 21°C Water |
| Electrical Circuit Breaker Protection | 5A |
| Heat Rejection (AT 32°C, WT 21°C) | 2250W |
| Accessories Included | Installation kit, Scoop |
| Package Carton (W x D x H) | 1196mm x 825mm x 640mm |
| GEM Number | AIM0021 |
DOCUMENTATION
IM-240XPE-28 Dimensional Drawing
Download
IM-240XPE-28 Instruction Manual
Download
IM-240XPE-28 Parts List
Download
IM-240XPE-28 Spec Sheet
Download
