FEATURES
Sustainable & Efficient
Variable-speed magnetic DC pump motor, R290 refrigerant, stand-by function, premium insulation, and an improved water tank design reduce energy and water consumption.
Durable & Hygienic Construction
Closed water circuit for maximum food safety, food-grade stainless steel (AISI 430) components for reduced wear, and an optional scoop holder kit for hygienic handling.
Advanced Technology
Smart pump control adjusts water flow during production to prevent chipped or cloudy cubes, while the closed cell system ensures clear, individual cube formation.
Smart, Long-Lasting Design
Automated cleaning with wash auto-restart and cleaning notifications help maintain performance and extend lifespan.

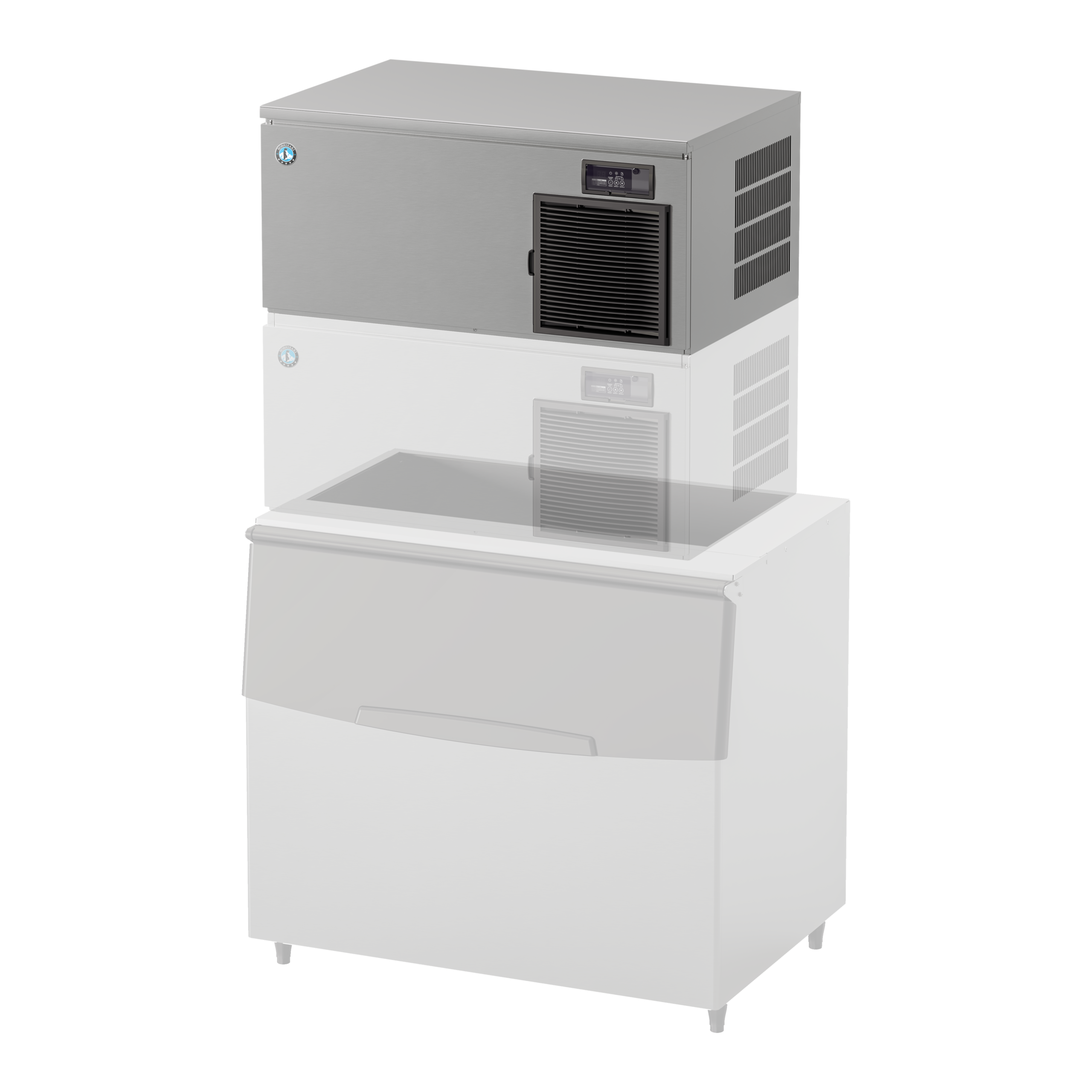

Compact & Space-Saving
Modular and stackable design maximises output while optimising kitchen space.
Plug & Play Installation
Simple controls, adjustable dimple size panel, and removable water tank and DC pump for easy operation and maintenance.
SPECIFICATIONS
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Production Capacity per 24hours | Approx. 195kg @10°C Air temp; 10°C Water Approx. 180kg @ 21°C Air temp; 15°C Water Approx. 160kg @ 32°C Air temp; 21°C Water |
| Corresponding Bins & Top Kits | B-801SA (IMD) | B-1300 SS (No Top kit) |
| Width | 1084mm |
| Depth | 700mm |
| Height | 500mm |
| Weight Net | 82kg |
| Packed Weight | 96kg |
| Cooling | Air |
| AC Supply Voltage | 1 PHASE 220-240V 50Hz/ 10 AMP Plug |
| Amperage | Running: 3.7A Rated Motor: 3.7A Starting: 27A |
| Refrigerant Charge | R290 / 147g |
| Operating Conditions | Ambient Temp.: 1-40°C Water Supply Temp.: 5-35°C Water Supply Pressure: 0.07-0.8MPa (0.7 – 8bar) Voltage Range: Rated Voltage ±6% |
| Electric Consumption | 845W |
| Water Consumption Per 24h | Approx. 0.67m³ @10°C Air temp; 10°C Water Approx. 0.32m³ @ 21°C Air temp; 15°C Water Approx. 0.29m³ @ 32°C Air temp; 21°C Water |
| Electrical Circuit Breaker Protection | 5A |
| Heat Rejection (AT 32°C, WT 21°C) | 2250W |
| Accessories Included | Installation kit, Scoop |
| Package Carton (W x D x H) | 1196mm x 825mm x 640mm |
| GEM Number | AIM0020 |
