FEATURES
Sustainable & Efficient
Energy-saving magnetic DC pump motor with variable speed, eco-friendly R290 refrigerant, stand-by function, premium foamed insulation, and an improved water tank design reduce both energy and water consumption.
Durable & Hygienic Construction
Closed water circuit for maximum food safety, food-grade stainless steel (AISI 430) components for reduced wear, and an optional scoop holder kit for hygienic handling.
Advanced Technology
Smart variable-speed pump adjusts water flow during production to prevent chipped or cloudy cubes, while the closed cell system forms clear, individual cubes.
Smart, Long-Lasting Design
Automated cleaning with wash auto-restart and cleaning notifications for the water circuit and condenser help maintain peak performance and extend lifespan.
Compact & Space-Saving
High output in a space-efficient design, ideal for professional kitchens with limited room.
Plug & Play Installation
Simple stand-by and wash controls, adjustable dimple size panel, and removable water tank and DC pump for easy maintenance and operation.
SPECIFICATIONS
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Production Capacity per 24hours | Approx. 195kg @10°C Air temp; 10°C Water Approx. 180kg @ 21°C Air temp; 15°C Water Approx. 160kg @ 32°C Air temp; 21°C Water |

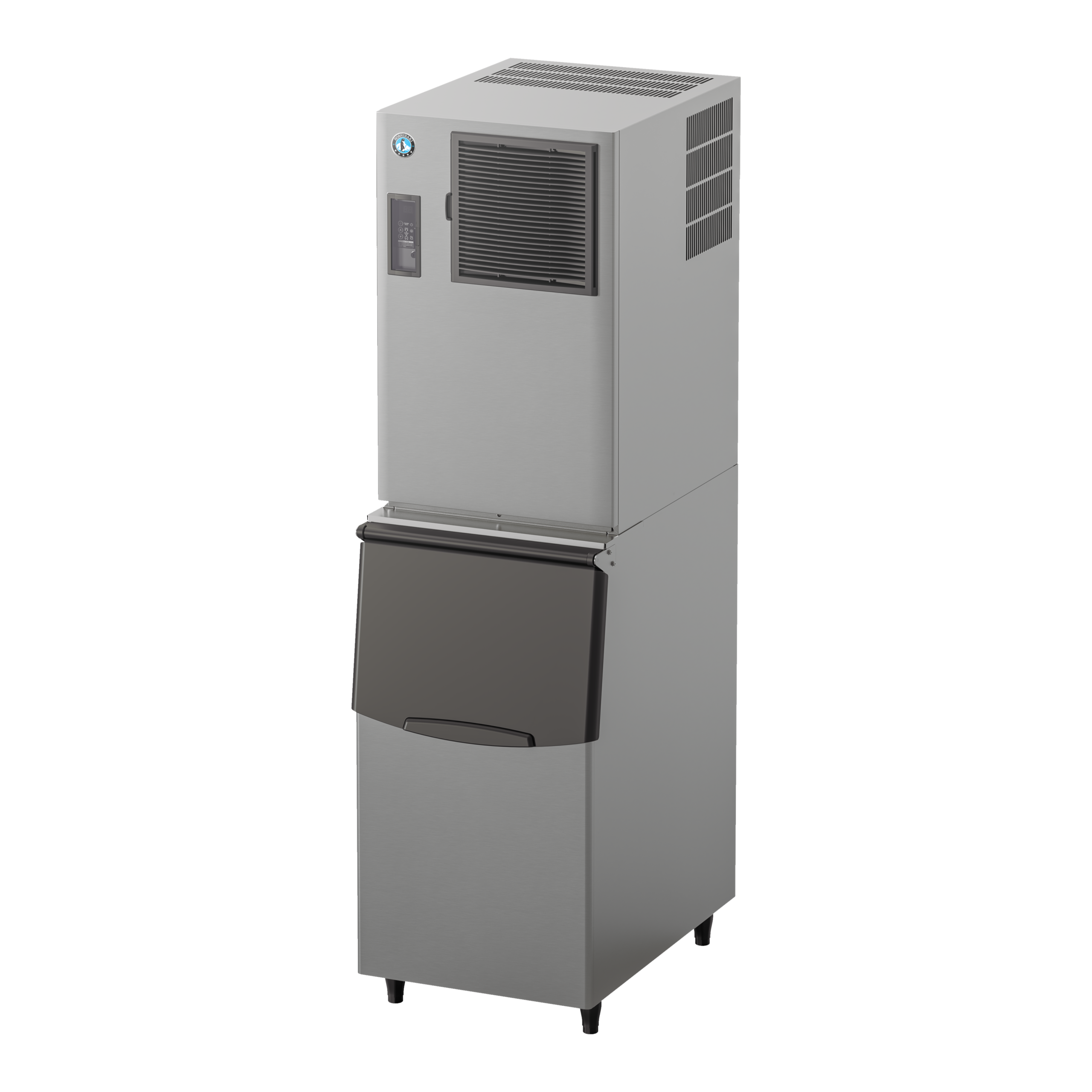

| Corresponding Bins & Top Kits | B-301SA (No Top kit) | B-501SA (8D) | B-801SA (8D + 18D) | Double Stack ANE: B-801SA (4DM) |
| Width | 560mm |
| Depth | 700mm |
| Height | 880mm |
| Weight Net | 78kg |
| Packed Weight | 89kg |
| Cooling | Air |
| AC Supply Voltage | 1 PHASE 220-240V 50Hz/ 10 AMP Plug |
| Amperage | Running: 3.8A Rated Motor: 3.8A Starting: 27A |
| Refrigerant Charge | R290 / 147g |
| Operating Conditions | Ambient Temp.: 1-40°C Water Supply Temp.: 5-35°C Water Supply Pressure: 0.07-0.8MPa (0.7 – 8bar) Voltage Range: Rated Voltage ±6% |
| Electric Consumption | 850W |
| Water Consumption Per 24h | Approx. 0.67m³ @10°C Air temp; 10°C Water Approx. 0.32m³ @ 21°C Air temp; 15°C Water Approx. 0.29m³ @ 32°C Air temp; 21°C Water |
| Electrical Circuit Breaker Protection | 5A |
| Heat Rejection (AT 32°C, WT 21°C) | 2510W |
| Accessories Included | Ice chute, Installation kit, Scoop |
| Package Carton (W x D x H) | 665mm x 820mm x 1054mm |
| GEM Number | AIM0020 |
