FEATURES
Sustainable & Efficient
Engineered for reduced environmental impact and lower operating costs, featuring a variable-speed magnetic DC pump motor, R290 natural refrigerant, energy-saving standby function, and high-grade foamed insulation. An improved water tank design also helps minimise water consumption.
Durable & Hygienic Construction
A fully closed water circuit protects against contamination throughout the entire ice-making process. Internal components are made from food-grade stainless steel (AISI 430) for enhanced durability and hygiene. Optional scoop holder kit available.
Advanced Technology
The smart water-flow pump motor automatically adjusts during each phase of the ice cycle to prevent chipped or cloudy cubes. The Closed Cell System ensures individual cube formation for consistently clear, high-quality ice.
Smart, Long-Lasting Design
Built for reliability with automated cleaning, reduced wear components, premium insulation materials, and a magnetic DC pump motor with variable speed for long-term performance.

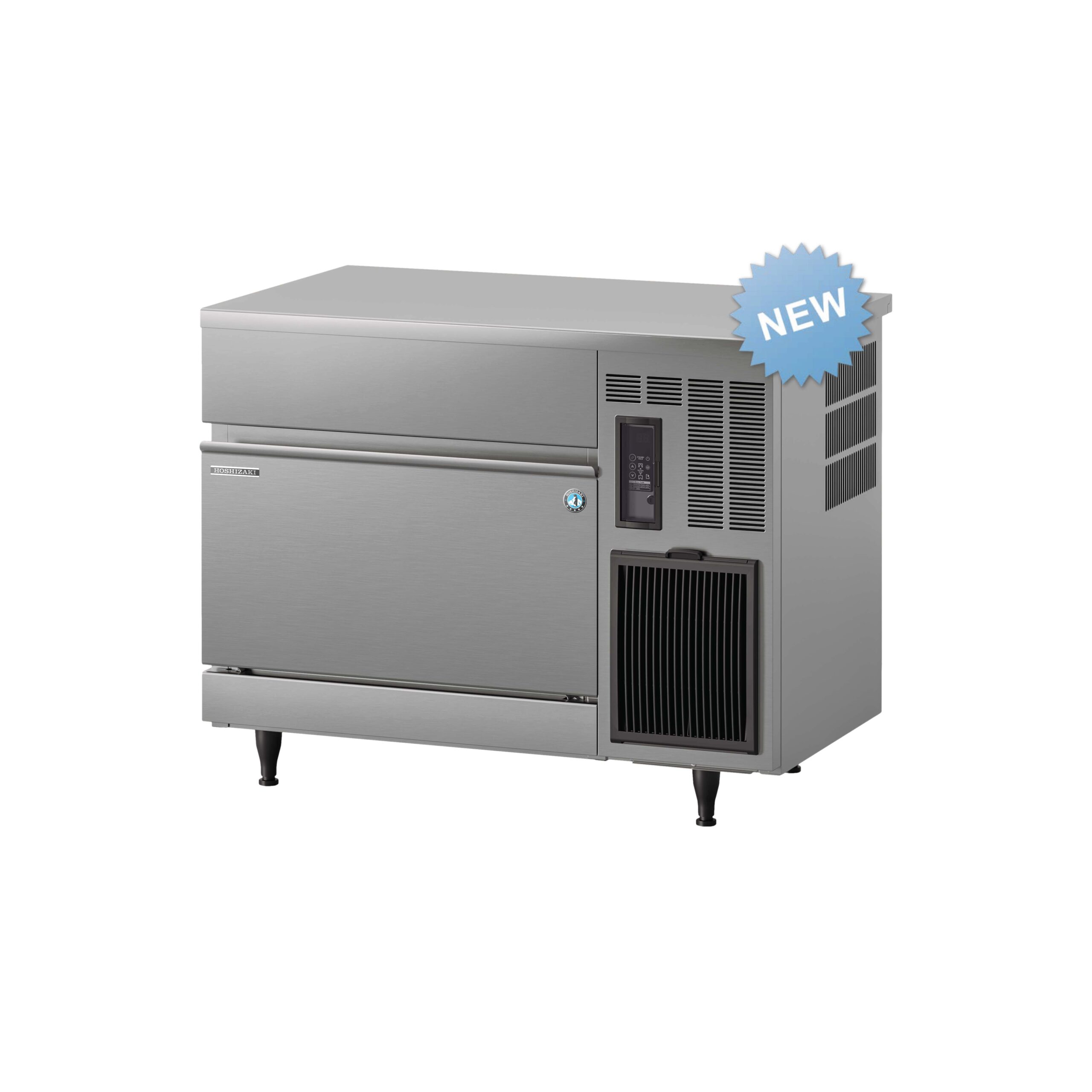

Compact & Space-Saving
Self-contained design delivers high ice output within a compact footprint — ideal for operations where space is limited.
Plug & Play Installation
Easy to install and operate, with an intuitive control panel for adjustable dimple size, cleaning notifications for the water circuit and condenser, and a removable water tank and DC pump for simplified maintenance.
SPECIFICATIONS
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Production Capacity per 24hours | Approx. 99kg @10°C Air temp; 10°C Water Approx. 92kg @ 21°C Air temp; 15°C Water Approx. 80kg @ 32°C Air temp; 21°C Water |
| Max Storage Capacity | Approx. 38kg (Bin Control Setting Approx. 23kg) |
| Width | 1004mm |
| Depth | 600mm |
| Height | 800mm |
| Weight Net | 80kg |
| Packed Weight | 91kg |
| Cooling | Air |
| AC Supply Voltage | 1 PHASE 220-240V 50Hz/ 10 AMP Plug |
| Amperage | Running: 4.2A Rated Motor: 4.2A Starting: 19A |
| Refrigerant Charge | R290 / 125g |
| Operating Conditions | Ambient Temp.: 1-40°C Water Supply Temp.: 5-35°C Water Supply Pressure: 0.07-0.8MPa (0.7 – 8bar) Voltage Range: Rated Voltage ±6% |
| Electric Consumption | 585W |
| Water Consumption Per 24h | Approx. 0.54m³ @10°C Air temp; 10°C Water Approx. 0.23m³ @ 21°C Air temp; 15°C Water Approx. 0.19m³ @ 32°C Air temp; 21°C Water |
| Electrical Circuit Breaker Protection | 5A |
| Heat Rejection (AT 32°C, WT 21°C) | 1450W |
| Accessories Included | Installation kit, Scoop |
| Package Carton (W x D x H) | 1110mm x 700mm x 875mm |
| GEM Number | AIM0012 |
