Sustainable & High Performance

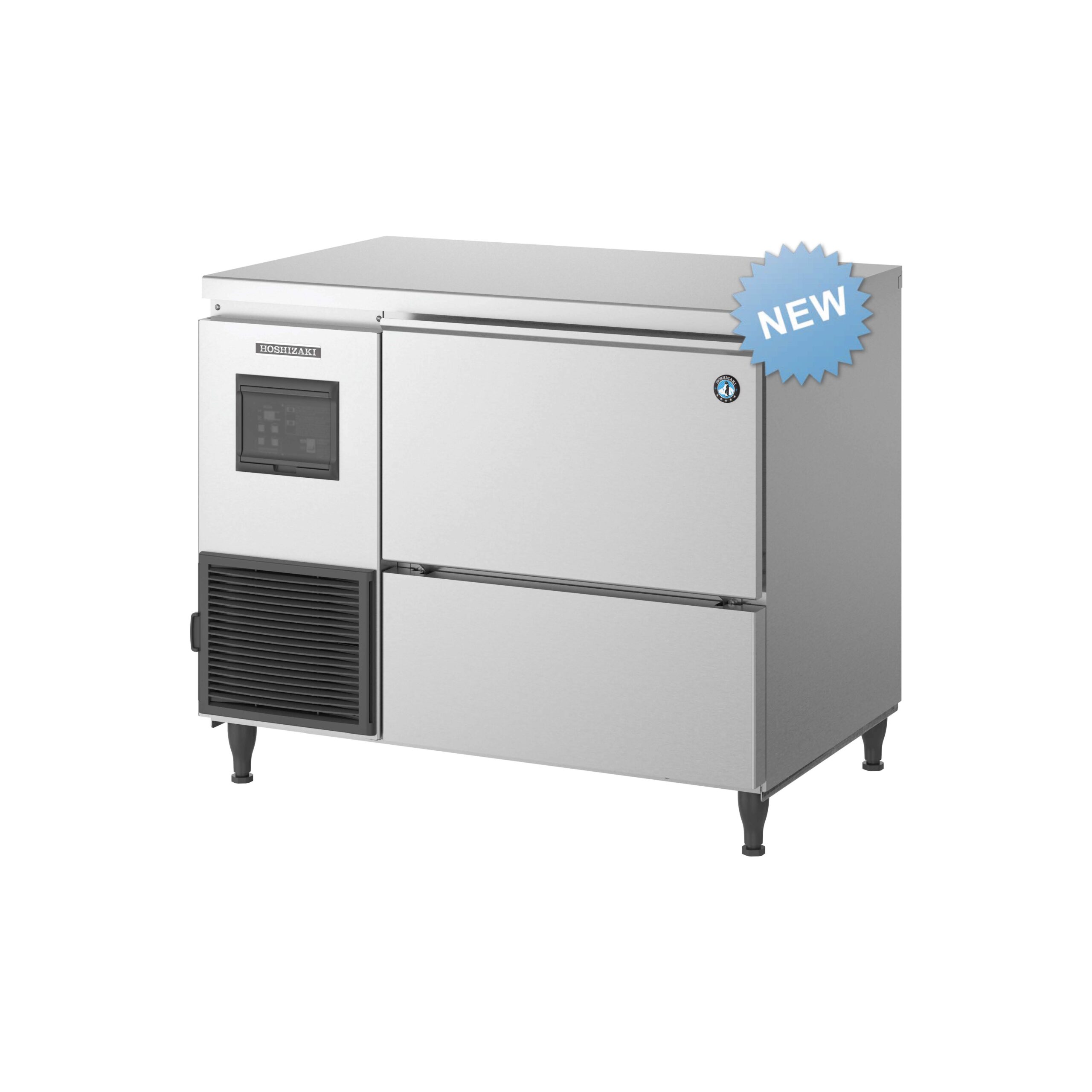

The FM-120KE-50-HCN uses natural refrigerant R290, an environmentally friendly solution that also enhances performance and maximises ice production efficiency.
Durable & Hygienic Construction
Featuring a robust stainless steel exterior, the machine is built for long-lasting use. Its closed water circuit provides protection against contamination throughout the entire ice-making process. Like all Hoshizaki machines, it is easy to operate, clean, and maintain.
Advanced Technology
The FM series includes a worktime-based component replacement system, monitored via an intuitive control display to support preventive maintenance. Hoshizaki was also the first to introduce an automated water circuit rinse cycle, helping prevent mineral buildup, protect the hydraulic system, and maintain outstanding hygiene standards.
Smart, Long-Lasting Design
Designed for reliability, the FM-120KE-50-HCN uses carbon graphite bushings instead of conventional ball bearings, enabling completely grease-free operation. Fewer moving parts reduce wear and tear, while water-lubricated bearings help prevent calcification and bacterial contamination.
Compact & Space-Saving
With external dimensions of 940 × 600 × 800 mm (W × D × H), the FM-120KE-50-HCN offers a compact footprint and is ideal for installations where space is limited.
Plug & Play Installation
The smart plug-and-play design ensures a fast and effortless setup, allowing the machine to be operational in no time.
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Production Capacity per 24hours | Approx. 110kg @10°C Air temp; 10°C Water Approx. 96kg @ 21°C Air temp; 15°C Water Approx. 75kg @ 32°C Air temp; 21°C Water |
| Max Storage Capacity | Approx. 65kg- Leveled (Bin Control Setting Approx. 47kg) |
| Width | 940mm |
| Depth | 600mm |
| Height | 800mm (798~833) |
| Weight Net | 76kg |
| Packed Weight | 88kg |
| Cooling | Air |
| AC Supply Voltage | 1 PHASE 220-240V 50Hz/ 10 AMP Plug |
| Amperage | Running: 2.0A Starting: 8.8A |
| Refrigerant Charge | R290 / 100g |
| Operating Conditions | Ambient Temp.: 5-40°C Water Supply Temp.: 5-35°C Water Supply Pressure: 0.05-0.8MPa Voltage Range: Rated Voltage ±6% |
| Electric Consumption | 355W |
| Water Consumption Per 24h | Approx. 0.110m³ @10°C Air temp; 10°C Water Approx. 0.096m³ @ 21°C Air temp; 15°C Water Approx. 0.075m³ @ 32°C Air temp; 21°C Water |
| Electrical Circuit Breaker Protection | 6A |
| Heat Rejection (AT 32°C, WT 21°C) | 655W |
| Accessories Included | Installation kit, Scoop |
| Package Carton (W x D x H) | 1046mm x 706mm x 887mm |
| GEM Number | AIM0025 |
