Sustainable & Efficient

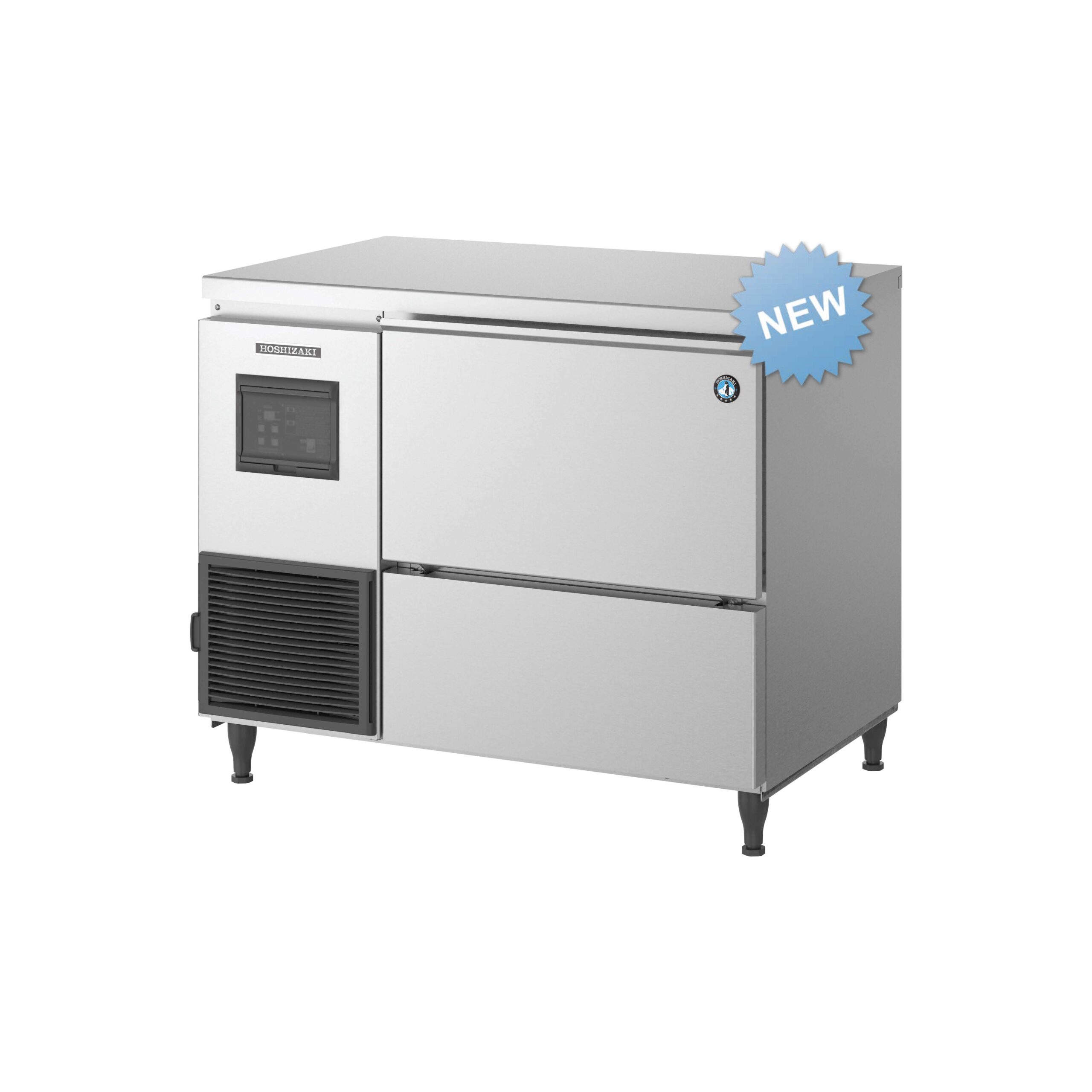

The FM-120KE-50-HC uses natural refrigerant R290, an environmentally friendly solution that also enhances performance and improves ice production capacity.
Durable & Hygienic Construction
With a stainless steel exterior, the machine is built for durability and long-term use. Its closed water circuit provides protection against contamination throughout the entire ice-making process. As with all Hoshizaki machines, it is easy to operate, clean, and maintain.
Advanced Technology
The FM series features a worktime-based component replacement system, monitored via an intuitive control display to support preventive maintenance. Hoshizaki was also the first to introduce an automated water circuit rinse cycle, helping prevent mineral buildup, protect the hydraulic system, and maintain exceptional hygiene standards.
Smart, Long-Lasting Design
Designed for reliability, the FM-120KE-50-HC uses carbon graphite bushings instead of conventional ball bearings, allowing for completely grease-free operation. Fewer moving parts reduce wear and tear, while water-lubricated bearings help prevent calcification and bacterial contamination.
Compact & Space-Saving
Its compact footprint makes the FM-120KE-50-HC an ideal choice for installations where space is limited.
Plug & Play Installation
The convenient plug-and-play design ensures quick and easy installation, allowing the machine to be up and running with minimal effort.
| Exterior | Stainless steel AISI 441, Galvanized steel (Rear) |
| Production Capacity per 24hours | Approx. 125kg @10°C Air temp; 10°C Water Approx. 105kg @ 21°C Air temp; 15°C Water Approx. 82kg @ 32°C Air temp; 21°C Water |
| Max Storage Capacity | Approx. 57kg- Leveled (Bin Control Setting Approx. 41kg) |
| Width | 940mm |
| Depth | 600mm |
| Height | 800mm (798~833) |
| Weight Net | 76kg |
| Packed Weight | 88kg |
| Cooling | Air |
| AC Supply Voltage | 1 PHASE 220-240V 50Hz/ 10 AMP Plug |
| Amperage | Running: 2.0A Starting: 8.8A |
| Refrigerant Charge | R290 / 100g |
| Operating Conditions | Ambient Temp.: 5-40°C Water Supply Temp.: 5-35°C Water Supply Pressure: 0.05-0.8MPa Voltage Range: Rated Voltage ±6% |
| Electric Consumption | 355W |
| Water Consumption Per 24h | Approx. 0.125m³ @10°C Air temp; 10°C Water Approx. 0.105m³ @ 21°C Air temp; 15°C Water Approx. 0.082m³ @ 32°C Air temp; 21°C Water |
| Electrical Circuit Breaker Protection | 6A |
| Heat Rejection (AT 32°C, WT 21°C) | 655W |
| Accessories Included | Installation kit, Scoop |
| Package Carton (W x D x H) | 1046mm x 706mm x 887mm |
| GEM Number | AIM0023 |
| Additional Parts | 87000148 HLF10G Water Filter Kit & Gauge 87000104 HLF10 Low capacity Water Filter System 87000106 HLFC100 320mm Replacement Cartridge 87000146 HLFC111 Water Filter 81000116 Stainless Steel Hose |
